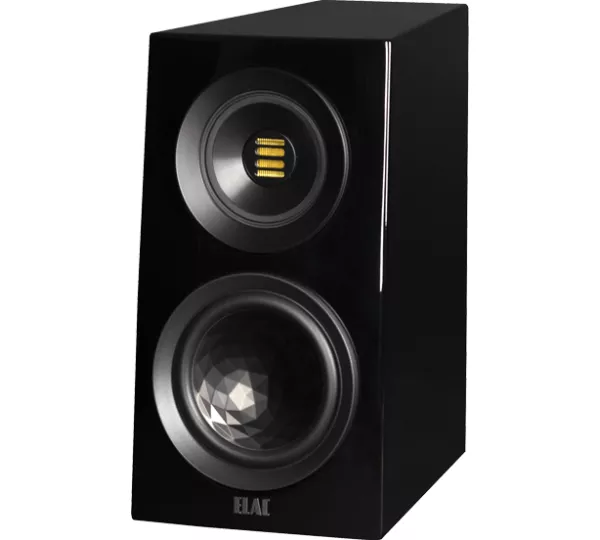

Concentro S 503
Diffusore 3 Vie Bass Reflex, woofer da 18 cm, un midrange da 13 cm, tweeter JET 6 concentrico con tecnologia stepX-JET.
Promo 5.200 Euro
Specifications
Type: 3-way, bass reflex
Woofer: 1 x 180 mm Ø, AS-XR cone
Midrange: 1 x 50 | 130 mm Ø, AS-XR AL cone
Tweeter: JET 5c
Crossover frequency: 400 | 2600 Hz
Nominal/peak power handling: 120 W | 200 W
Minimum impedance: 4,8 Ω bei 120 Hz
Peak power handling: 400 W
Sensitivity: 87 dB / 2,83 V/m
Suitable for amplifiers from – to: 4 – 8 Ω
Nominal impedance: 4 Ω
Recommended amplifier power: 60 – 500 W/channel
Finishes: High-Gloss Black Lacquer, High-Gloss White Lacquer High-Gloss Walnut Veneer
Accessories: Bi-Wiring-jumper set, 3 DCR (Directivity Control Ring)
Height: 400 mm
Width: 225 mm
Depth: 372 mm
Weight: 13.4 kg
