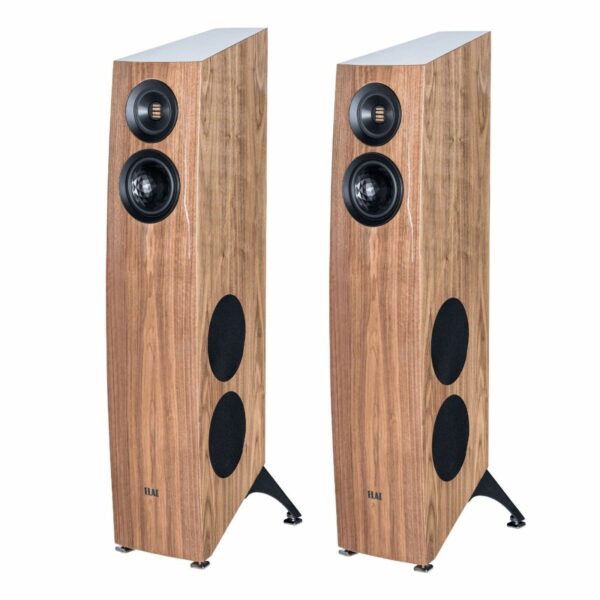

Concentro S509
The ELAC Concentro S 509: a loudspeaker with characterful design and an impressive feature set. The wraparound baffl e forms the basis for magnifi cent acoustic performances. Combined with the gently angled cabinet, the trapezoid basic shape and an expressive bottom assembly, complete with ‘high-heel’ effect, the result is a powerful yet natural and elegant appearance. Innovative by tradition: the acoustic centerpiece of the Concentro S 509 is the stepX-JET – a concentric driver built around the new JET 5c tweeter and a midrange driver with an aluminum membrane.
Promo 12.500 Euro
Its highlights are the exchangeable DCRs (Directivity Control Rings), which optimize the loudspeaker’s sound in the room by altering its directional characteristics in the mid-range frequencies. Reassuring to know that everything has been thought of: from the four powerful woofers in an ICD confi guration for defi ned bass reproduction devoid of unwanted mechanical vibrations to the high-quality design of the frequency crossovers and the luxurious cabinet fi nishes… the Concentro S 509 makes no compromises in technical terms but reveals a character of unbridled enthusiasm and a tangible love for music.
Height: 1320mm with Spikes/Washer
Width: 325mm with Spikes/Washer
Depth: 460mm with Spikes/Washer
Weight: 42,8 kg
Type: 4-Way, Bass Reflex
Woofer: 4 x 180mm AS Cone
Low-Midrange: 1 x 180mm AS-XR Cone
High-Midrange: 1×50 | 130mm AL Cone
Tweeter: 1 x Jet 5c
Crossover Frequency: 120 | 400 | 2600 Hz
Nominal power handling: 280 Watts
Minimum Impedance: 3.2 Ohms @ 360 Hz
Peak Power Handling: 340 Watts
Frequency Range: 22 – 50,000 Hz
Sensitivity: 88 dB / 2.83V/m
Suitable for Amplifiers: 4 – 8 ohms
Nominal Impedance: 4 Ohms
Recommended amplifier power: 60 – 600 Watts per channel
Finishes: Black High Gloss, White High Gloss, Walnut High Gloss
Accessories Included: Bi-Wiring Set, Gloves, Spike Set, Washer
